Info

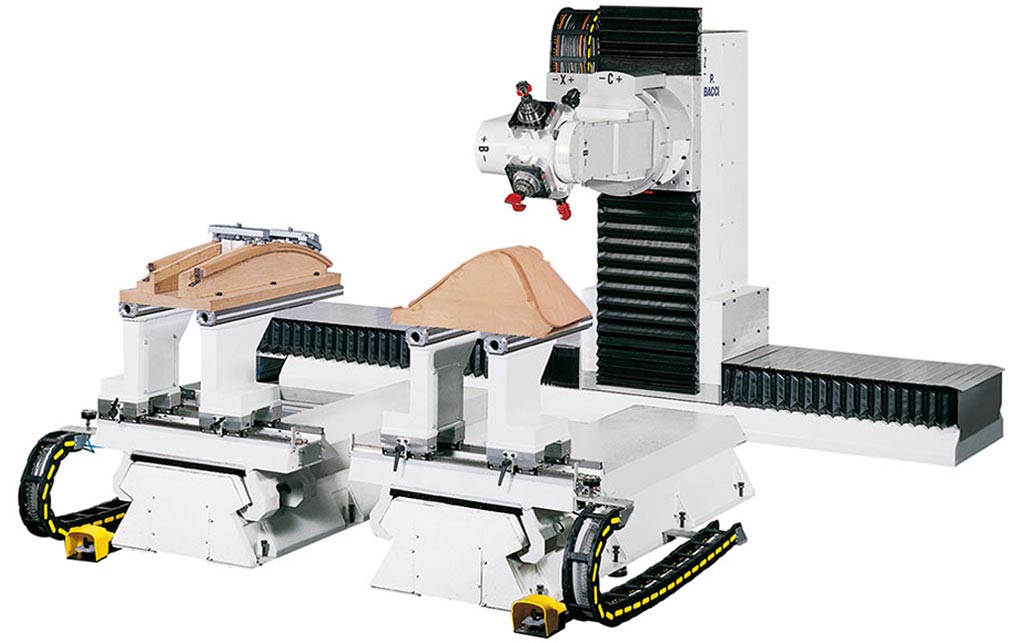

The 6-axes numerically controlled TWIN machining center, equipped with two independent tables, can perform, in a single set-up, various machining operations traditionally carried out on several machines, such as:
- Boring / Boring on opposite faces
- Mortising / Finger jointing / Milling
- 4/5 axes profiling / Carving
on several components for chairs, tables and sofas.
Technical data
|
Interpolated axes |
N. 6 |
|
Longitudinal X axis |
2,200 mm / 3,400 mm |
|
Transversal Y axis |
1,800 mm |
|
Vertical Z axis |
1,250 mm |
|
Contouring on Y |
1,200 mm |
|
B axis |
Unlimited |
|
C axis |
400° |
Working Tables
TGV TABLES
Variable geometry tables (a Bacci patent). The support surface of each working table is composed of two rails with adjustable c/c distance. The rails are made of steel to ensure proper rigidity during even the heaviest machining work, long service life and constant precision. The rails are designed to bring the vacuum suction inwards, and M8 holes to fix the templates are provided at 50 mm c/c distance. Dovetail guides are provided along all the edges of the rails to block and move pneumatic clamps, stops, suction cups and other equipments.
Working Tables
TGV-TRC ROTATING TABLES

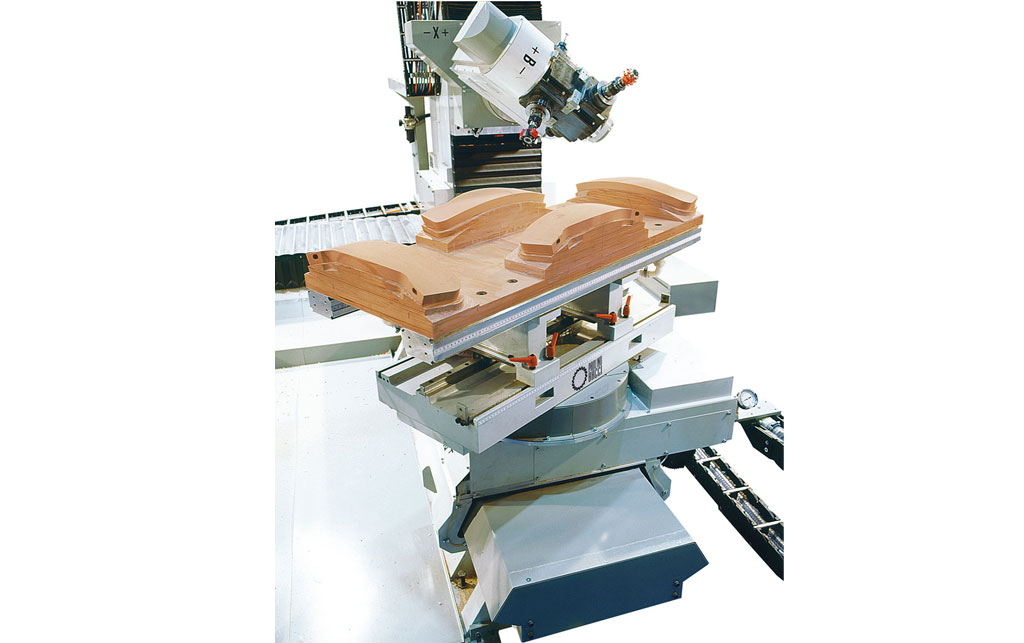

TGV-TRC variable geometry tables (patented) rotate around an interpolated vertical axis so that all 4 faces of the table can be positioned in front of the operating head. This feature allows not only the possibility of machining all 4 faces of the table with horizontally positioned spindles, but also allows:
- Positioning multiple elements on the same jig, thereby reducing set-up times and the number of jigs required
- Speeding up cycle times, as the operating head does not need to rotate around the table, because the table itself quickly exposes all 4 faces to the operating head
- Simplifying machine programming for profiling oval or rounded pieces
- Increasing the machine’s contouring capacity in the Y direction.
Working Tables
TGV-NC TABLES

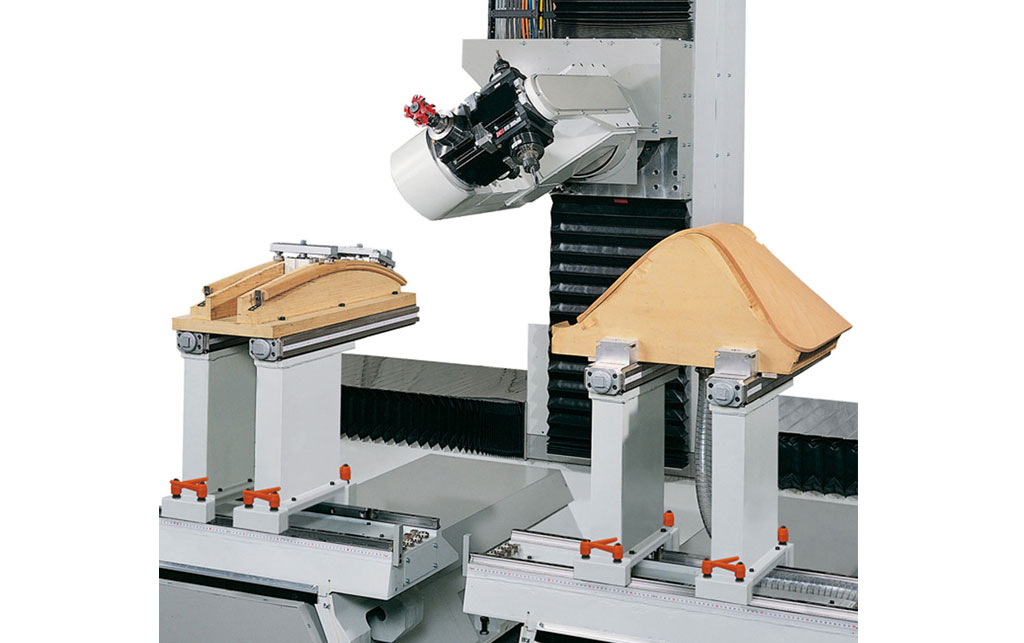

Numerically controlled variable geometry tables. The distance between the two TGV type support rails is interpolated and numerically controlled in the X direction. This allows mirror machining on pieces positioned on the 2 steel TGV rails of the table, thereby cutting machining time in half.
Operative Heads
T2+2 HEAD TYPE

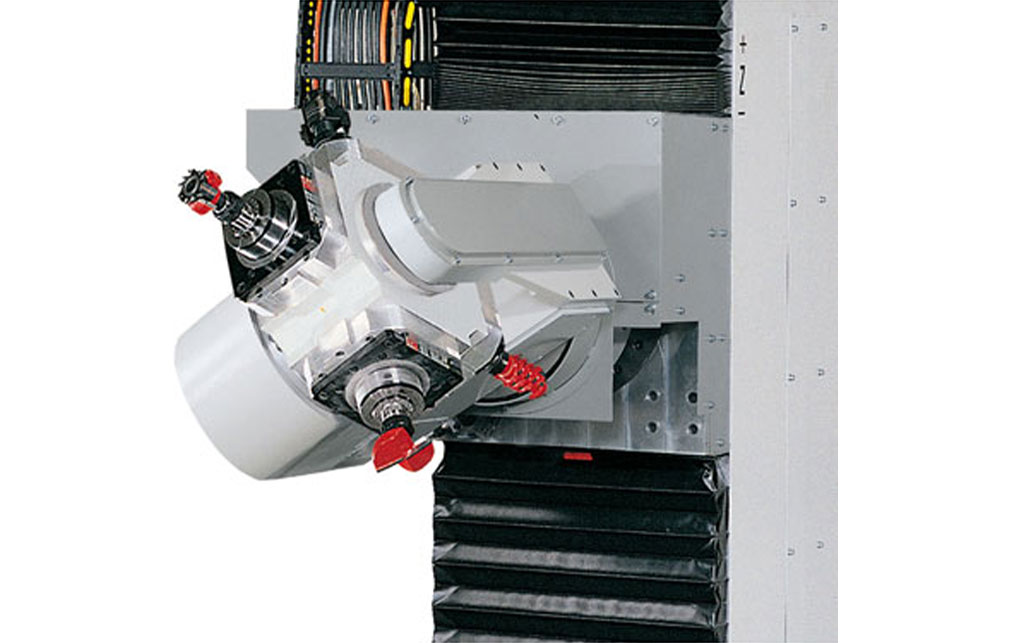

A single fork holding two double-exit electric spindles placed in cross position and extremely compact. The opposite exits of the same spindle rotate in opposite directions.
Operative Heads
ESTA TIPO 4Prismatica

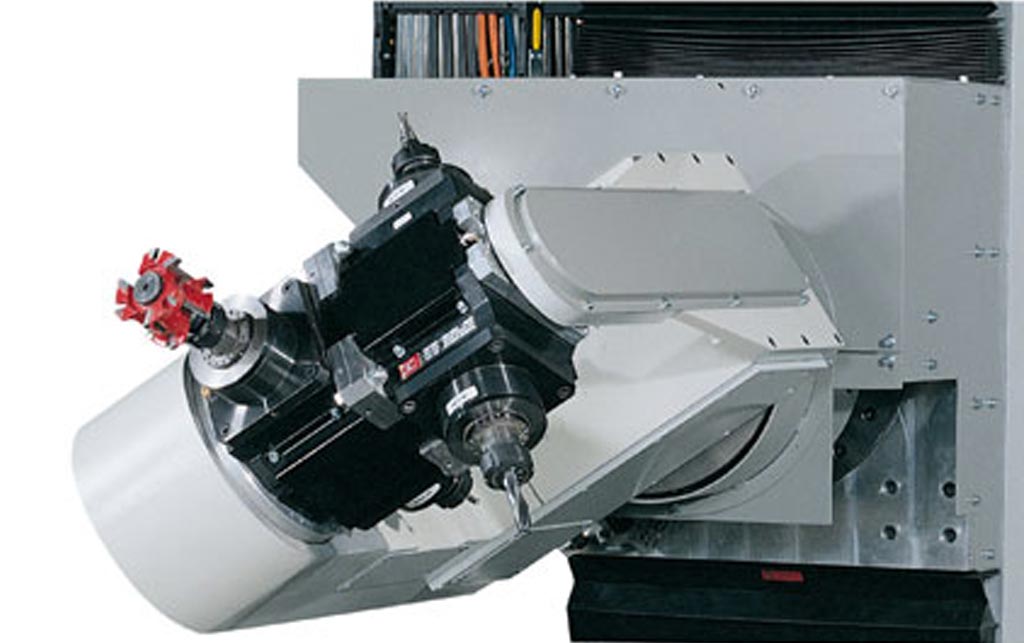

Una forcella doppia portante 4 elettromandrini indipendenti a configurazione complanare tangenziale cosi da ridurre al minimo gli ingombri.
Operative Heads
T4 HEAD TYPE

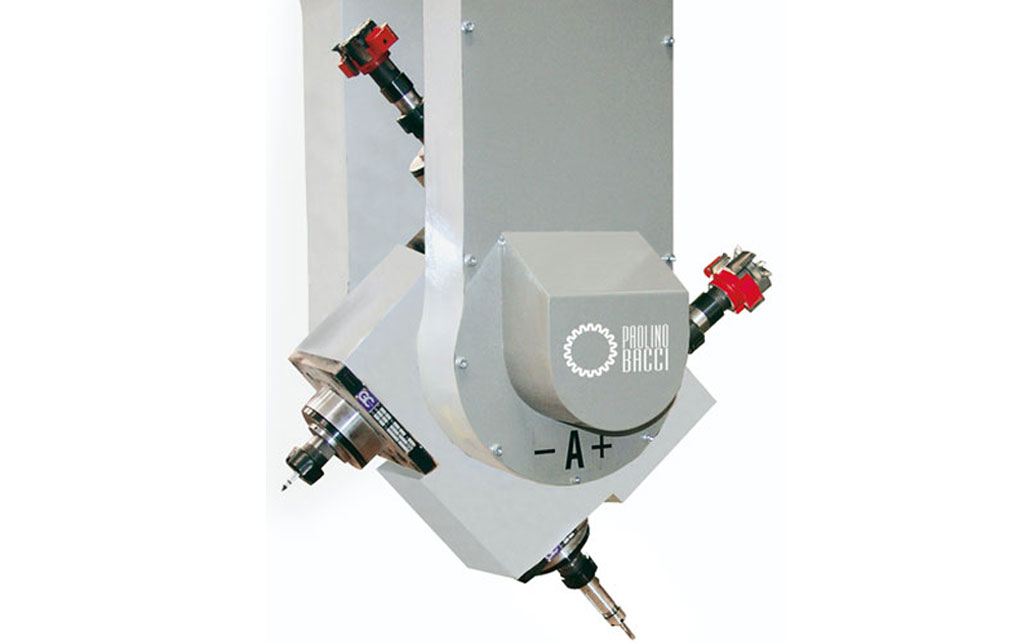

A double fork holding 4 independent electric spindles, with coplanar configuration, arranged radially. Ideal for machining curved pieces that require a great space between one motor and another.
Operative Heads
AUTOMATIC TOOL CHANGER MAGAZINE

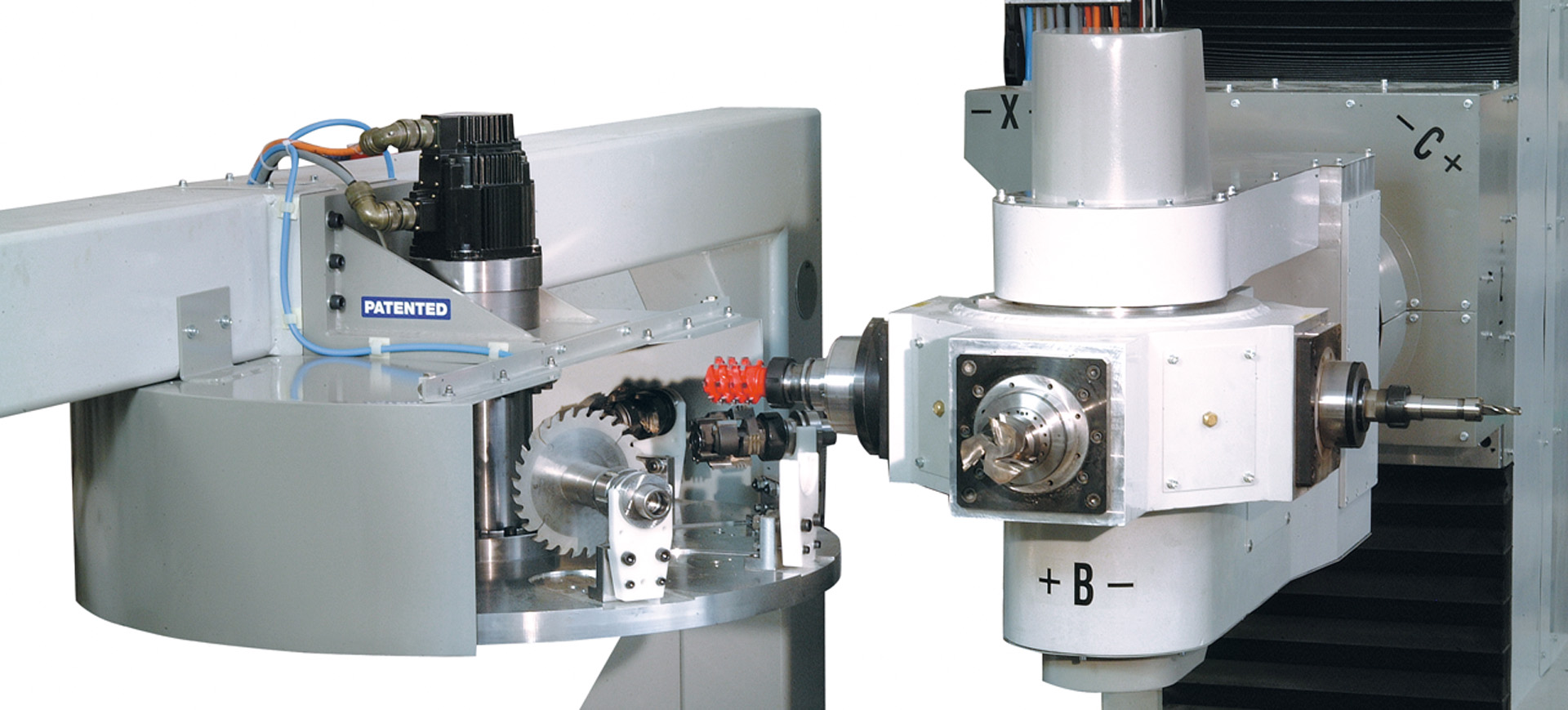

The controlled, 8 or 16 positions tool changer magazine may be provided with all operating units equipped with a tool changing spindle (ISO 30 or HSK 64). Rotation is controlled by a servomotor (therefore not pneumatic) to guaranty maximum positioning precision during tool change. All Bacci tool changer magazines are completely dust-proof and do not reduce the machine’s working fields, as they are positioned out of the machining area to avoid any possible interference with the working tables and the spindles.
